Network Cameras

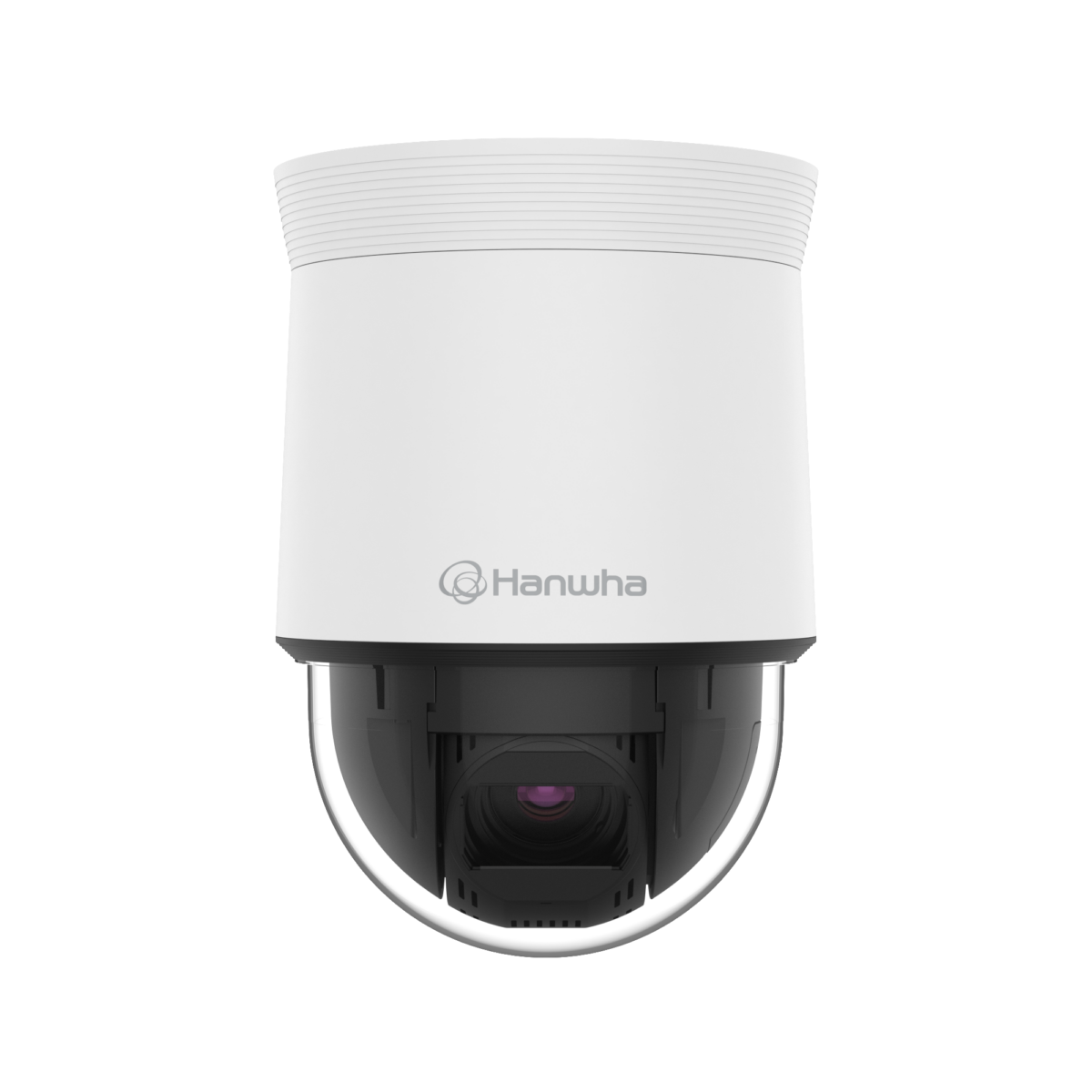

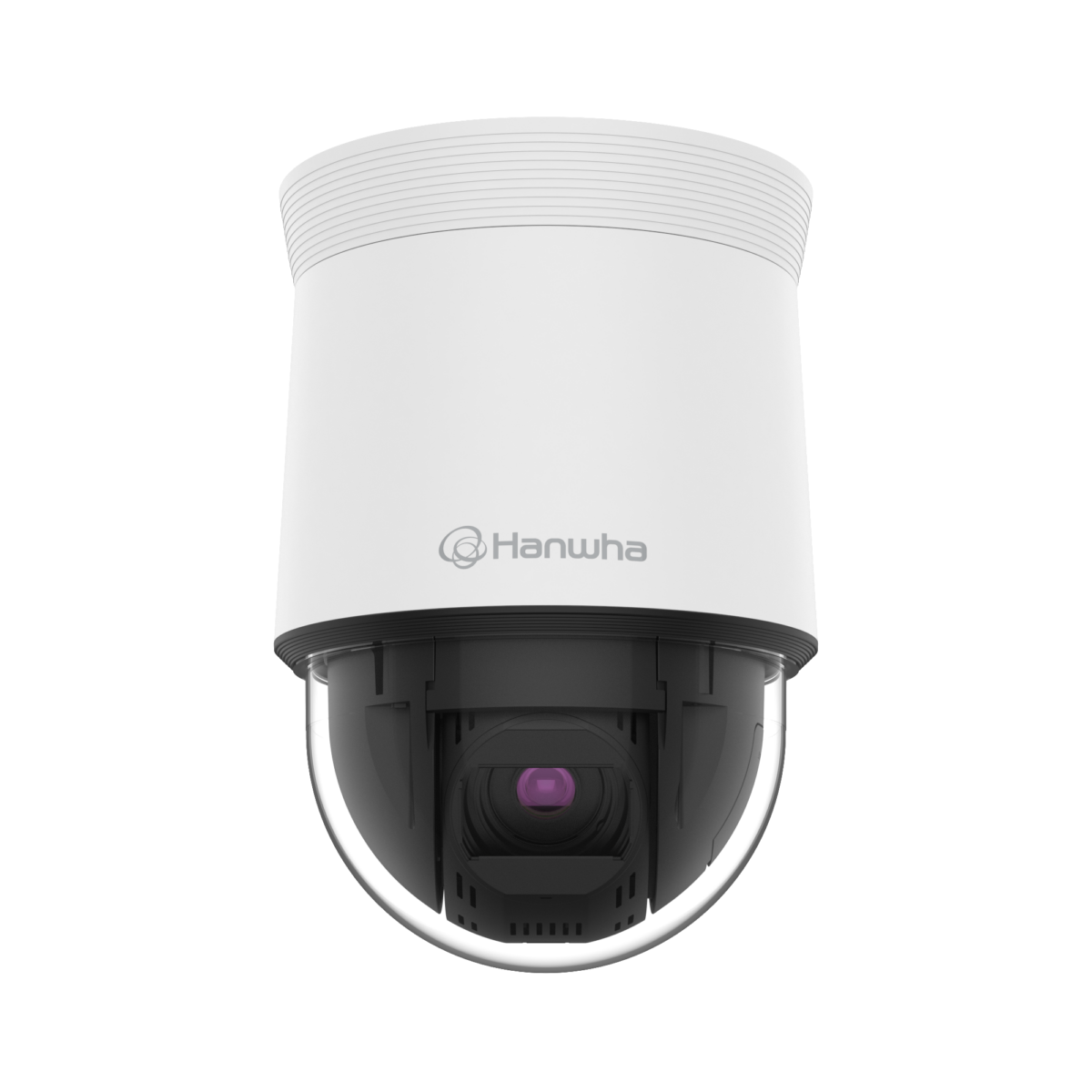

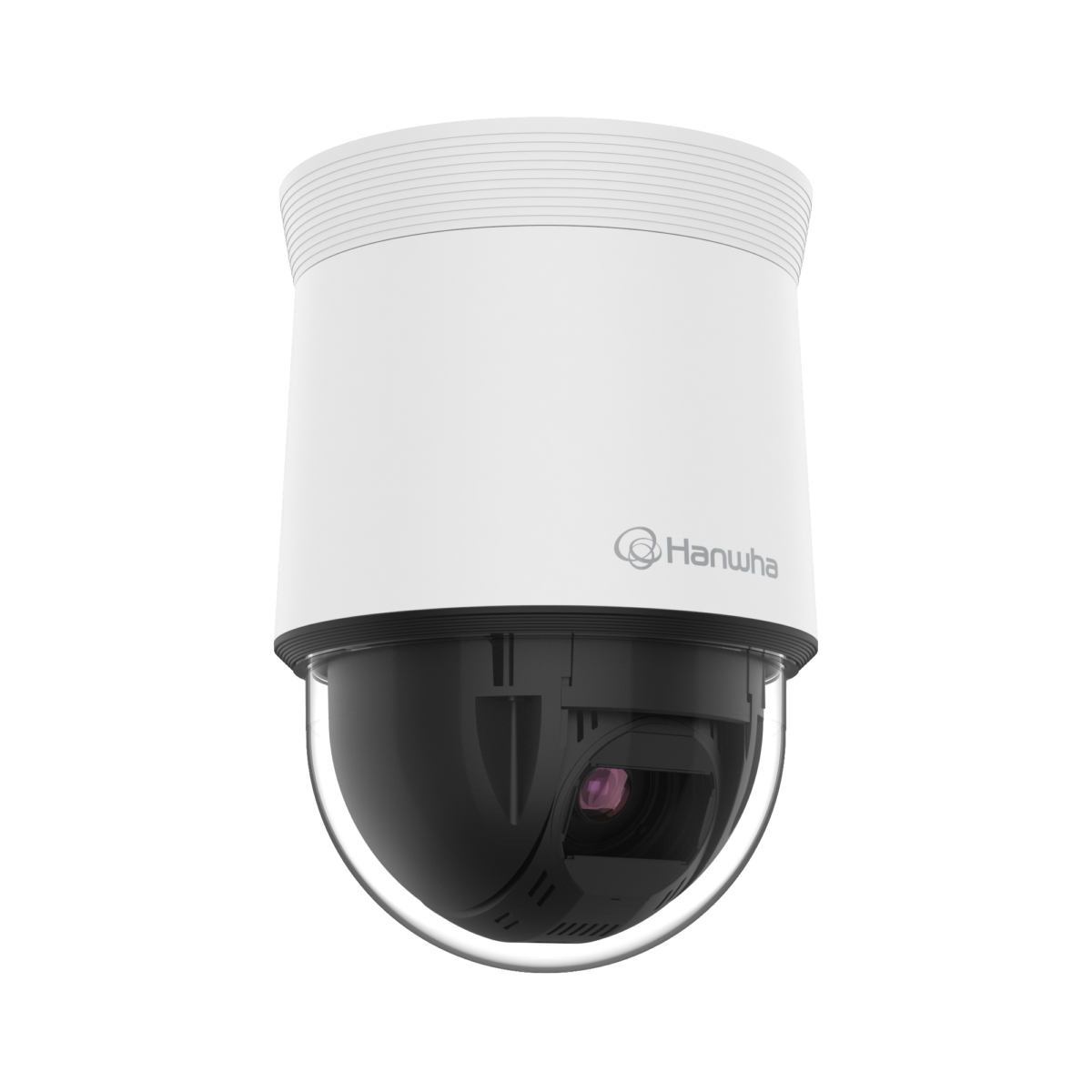

QNP-6320

2MP PTZ Camera

Key Features
• Max. 2MP resolution
• 4.44~142.6mm (32x) lens
• Day & Night (ICR), WDR, DIS (Built-in gyro sensor)
• Intelligent Analytics
• H.264, H.265, MJPEG codec, WiseStreamII
• Micro SD/SDHC/SDXC 1slot 256GB
Contact Sales Datasheet

["camera","network","ptz"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Tổng quan

Weight and size reduced up to 55%, better performance, easier installation
New Q series PTZ reduced the weight by up to 55% for the Dome type (QNP-6230RH) and the size became more compact than conventional PTZ cameras. More compact and lighter design significantly reduce the burden of installation.
Moreover, the lightened head increased the speed of Pan/Tilt.
Precise PTZ control
New Q series PTZ supports delicate and precise PTZ control. Conventional PTZ cameras had challenges in offering precise monitoring of moving objects due to its pre-set centered movement. New Q series PTZ provides stable object monitoring using precise PTZ control when a user wants to track moving objects manually.


Thông số sản phẩm

Video
Imaging Device 1/2.8" CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec, 30IRE)
BW: 0.005Lux(F1.6, 1/30sec, 30IRE)
Lens
Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom (digital 32x, total 1024x zoom)
Optical Zoom 32x
Max. Aperture Ratio F1.6(Wide)~F4.4(Tele)
Angular Field of View H: 64.66°(Wide)~2.29°(Tele)
V: 38.08°(Wide)~1.30°(Tele)
Min. Object Distance Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft)
Focus Control Oneshot AF, Focus save
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360° Endless
Pan Speed Preset: 700°/sec, Manual: 0.024°/sec~200°/sec
Tilt Range 105°(90°~-15°)
Tilt Speed Preset: 300°/sec, Manual: 0.024°/sec~200°/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2°
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, 4point quadrangle zones
- Color: Grey/Green/Red/Blue/Black/White
- Solid/Mosaic
Gain Control Off / Max gain / Manual
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip&Mirror
Analytics Analytics events
- Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection
Alarm I/O Input 4ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When alarm trigger occurred
- File upload(image) : e-mail/FTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Auto Tracking Support
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), NTCIP1205
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Security
OS / Firmware Protect Firmware encryption
User authentication Digest Authentication, Privent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control IP address filtering
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log
Device ID Device Certificate(Hanwha Techwin Root CA, pre-installed)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot Max. 256GB
Memory 1GB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C~+55°C(14°F~+131°F) / 0~95% RH(Non-condensing)
Storage Temperature / Humidity -30°C~+60°C(-22°F~+140°F) / 0~95% RH
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption PoE+: Max 14.5W, typical 12W
Mechanical
Color / Material White / Plastic
RAL Code RAL9003
Product Dimensions / Weight ø152x218mm(ø5.98x8.58"), 1700g(3.75 lb)
Hanging Mount (Dome) SBP-301HMW3
Ceiling Mount (Assy) SBP-300CMW, SBP-300CMW1/900CMW, SBP-150CMI/300CMI, SBP-300CMTW, SBP-300CMTS
Wall Mount SBP-300WMW1, SBP-300WMW, SBP-250WMW, SBP-390WMW2
Pole Mount SBP-300PMW2, SBP-156LMW1
In-ceiling Mount SHP-1520FW
Parapet Mount SBP-300LMW
Corner Mount SBP-300KMW1
Housing (Box) SHP-3701H
Cabinet SBP-300NBW
Other Compatible Models SPB-PTZ6, SBP-115PFA
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
IC Regulation ICES-003 Issue 7 Class A
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environment IEC/EN 63000
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 60.7m(199.1ft) / Tele: 1921.3m(6303.4ft)
Observe (63PPM/ 19PPF) Wide: 24.3m(79.6ft) / Tele: 768.5m(2521.4ft)
Recognize (125PPM/ 38PPF) Wide: 12.1m(39.8ft) / Tele: 384.3m(1260.7ft)
Identify (250PPM/ 76PPF) Wide: 6.1m(19.9ft) / Tele: 192.1m(630.3ft)
