Appliance

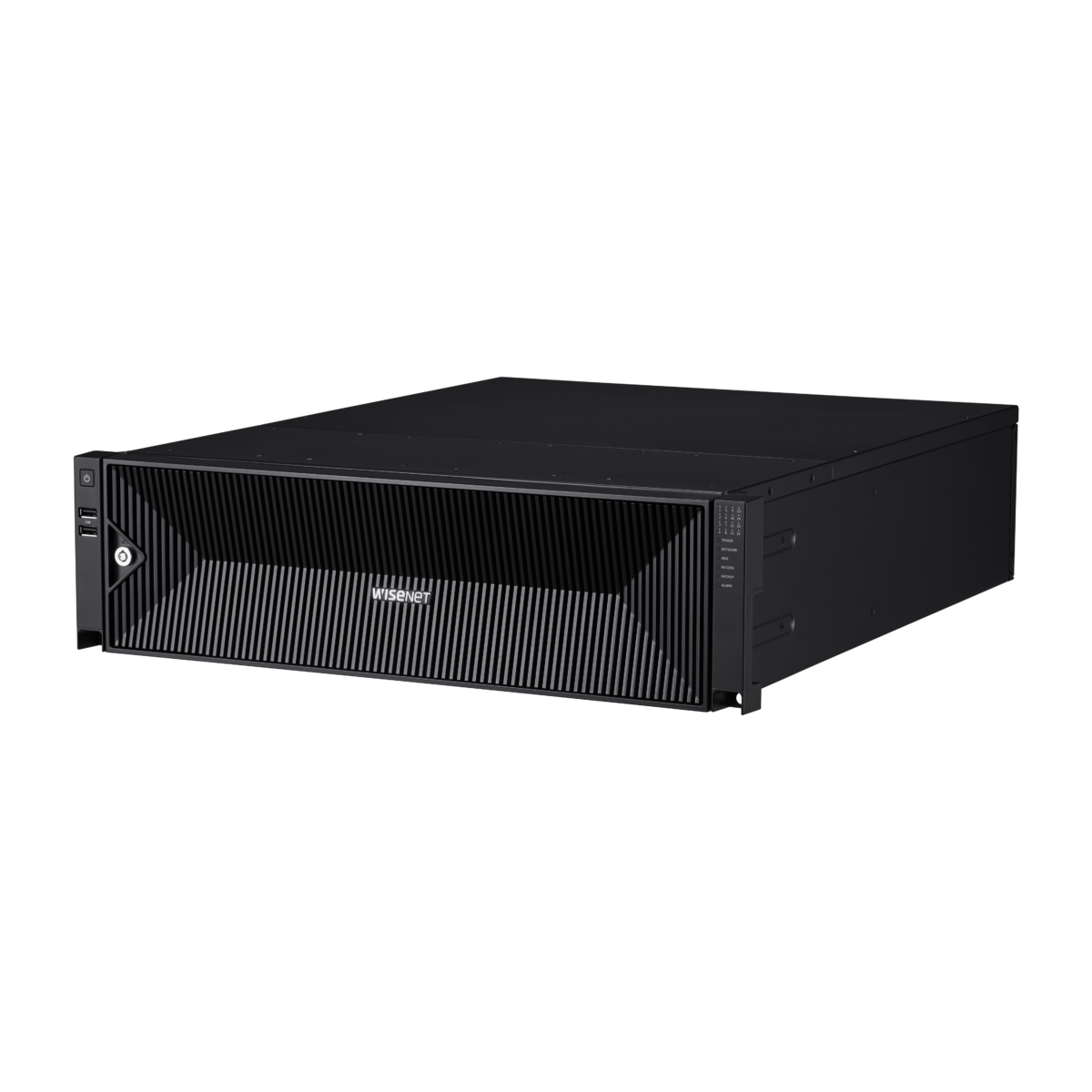

XRP-4310DB4
128CH SSM Recording Server
Key Features
• Intel Core i7-8700T
• SSM Preinstalled
• Up to 32MP Camera supported
• Server Clustering Support - Max. 132CH
• Recording Bandwidth: Max. 400Mbps
• Playback/Search Bandwidth: Max. 150Mbps
• 16 Bay Support – Enterprise HDD
• Hot Swap Support - Volume 2ea
• 2 HDMI port Support
• RAID 1 / 5 / 6 / 10 / 50 Support
• Redundant Power Support
• Windows 10 IoT Enterprise LTSC on M.2 SSD
• AI Event (Face, Appearance, Face mask, Vehicle) Trigger
• SSM Preinstalled
• Up to 32MP Camera supported
• Server Clustering Support - Max. 132CH
• Recording Bandwidth: Max. 400Mbps
• Playback/Search Bandwidth: Max. 150Mbps
• 16 Bay Support – Enterprise HDD
• Hot Swap Support - Volume 2ea
• 2 HDMI port Support
• RAID 1 / 5 / 6 / 10 / 50 Support
• Redundant Power Support
• Windows 10 IoT Enterprise LTSC on M.2 SSD
• AI Event (Face, Appearance, Face mask, Vehicle) Trigger
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please follow the Hanwha Vision HDD compatibility list.
Thông số sản phẩm
| Display | ||
|---|---|---|
| Network Camera | ||
| Inputs | Max. 128CH (※ If clustering, 132CH) | |
| Resolution | 32MP ~ CIF | |
| Protocols | Wisenet, ONVIF | |
| Decoding | ||
| Local Display | Dual if Full HD monitor Single if UHD monitor |
|
| Multi Screen Display | 1/4/9/16/25/36/49/64/72/81/100/121/132/Custom/Auto Mode | |
| Resolution | 1920fps@640x360 (128 division) 2160fps@720p (72 division) 1080fps@1080p (36 division) |
|
| Performance | ||
| Operating System | Windows 10 IoT Enterprise LTSC (SSM preinstalled) | |
| Record | ||
| Compression | H.265, H.264, MJPEG, WiseStream(H.264, H.265) | |
| Recording Bandwidth | Max 400Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Schedule (Continuous / Event), Event (Pre / Post), Event Profile, ARB, Dual-Track | |
| Event Trigger | Video loss, Camera event(Sensor, MD, Passing, Entering, Exiting, Disappearing (Appearing), Tampering, Tracking, Face Detection, Audio Detection, ANPR, Bestshot), AI Event (Face, Appearance, Face mask, Vehicle) |
|
| Event Action | Instant Viewer, Preset, Alarm Out, Pop-up, Sound and E-mail notification | |
| Search & Play | ||
| Playback Bandwidth | Max 150Mbps | |
| User | Max. 1024 Users (132Ch concurrently) | |
| Simultaneous Playback | Max 128ch (※if clustering, 132CH) | |
| Fisheye Dewarping | Console | |
| Storage | ||
| Supported HDD | Up to 10TB | |
| HDD Slot | SATA 16ea (3.5" 16ea Hot Swap - Volume 2ea) Enterprise HDD (6TB,8TB,10TB) |
|
| RAID | 1/5/6/10/50 | |
| Backup | ||
| File backup | AVI, SEC | |
| Function | Manual Backup, Onetime Schedule Backup , Schedule Backup , Privacy Masking Backup | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, SNMP(Client), HTTPS, ONVIF (Profile-S), SUNAPI(Client) | |
| DDNS | Wisenet DDNS | |
| Wired(LAN) | Ethernet RJ-45 3ea | |
| Audio | ||
| Input/Output | 128CH(network) | |
| Compression | G.711 u-law(PCM), G723, G726(ADPCM), AAC | |
| Audio Communication | 2-Way | |
| Security | HTTPS(SSL) Authentication Methods Digest Authentication Method IP address filtering User access logs recording Device certification (with Hanwha Techwin Root CA) |
|
| Viewer Software | SSM Client, Wisenet Mobile | |
| Functions | ||
| PTZ | ||
| Control | Via GUI, Controller (SPC-2000, SPC-7000) | |
| Preset | 300 | |
| Smart Phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI) | |
| Control | Live(Multi-Profile Support), Playback | |
| Max. Remote Users | Max. 1024 Users (132Ch concurrently) | |
| Redundancy | ||
| Failover | Active&Active, Active-Standby | |
| ARB | Support | |
| Interface | ||
| Front | ||
| Indicator | LED(Status Display) Power, Network, HDD, Save, Backup, Alarm |
|
| HDD Key Lock | Yes | |
| HDMI | 2EA (4k 1ea, FHD 1ea) | |
| Audio | USB | |
| Ethernet | Gigabit Ethernet RJ-45 (1000 Base-T) 3ea | |
| USB | 4EA (USB 3.0 2ea, USB 2.0 2EA) | |
| Power inlet | AC 2EA | |
| System | ||
| System Control | Mouse, Keyboard | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| CPU | Intel Core i7-8700T | |
| Memory | DDR4 16GB RAM | |
| OS HDD | M.2 SSD 128Gb | |
| Operating Temperature | +0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | Less than 80% | |
| Electrical | ||
| Power Input | 100 ~ 240V AC, 50 ~ 60Hz | |
| Power Consumption | Max 285W Dual | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440.0 x 132.0 x 548.1mm (Including Cover: 571.1mm) | |
| Weight | Approx.14.05Kg (30.97 lb, without HDD) | |
